Products Description
|
|
PP Japan JPP FX4G Food grade optical grade anti-static impact weather resistance Electronic and electrical applications Automotive parts applications |
| JPP Japan JPP FX4G Application cases: Film, injection molding, blow molding, extrusion coating, stretching, fiber, sheet, bottle cap/fine cloth, short fiber, film, filaments, tape, BOPP film thin, IPP film thin, UV stabilized fiber, home appliance parts, auto parts, Household Appliances, Premium Packaging (CPP), Premium Packaging (CPP), Clear Containers, Large Containers, bottle LIDS, Fiber Packaging, Food Containers, Continuous fiber, straw, daily Necessities, Disposable syringes, |
product feature

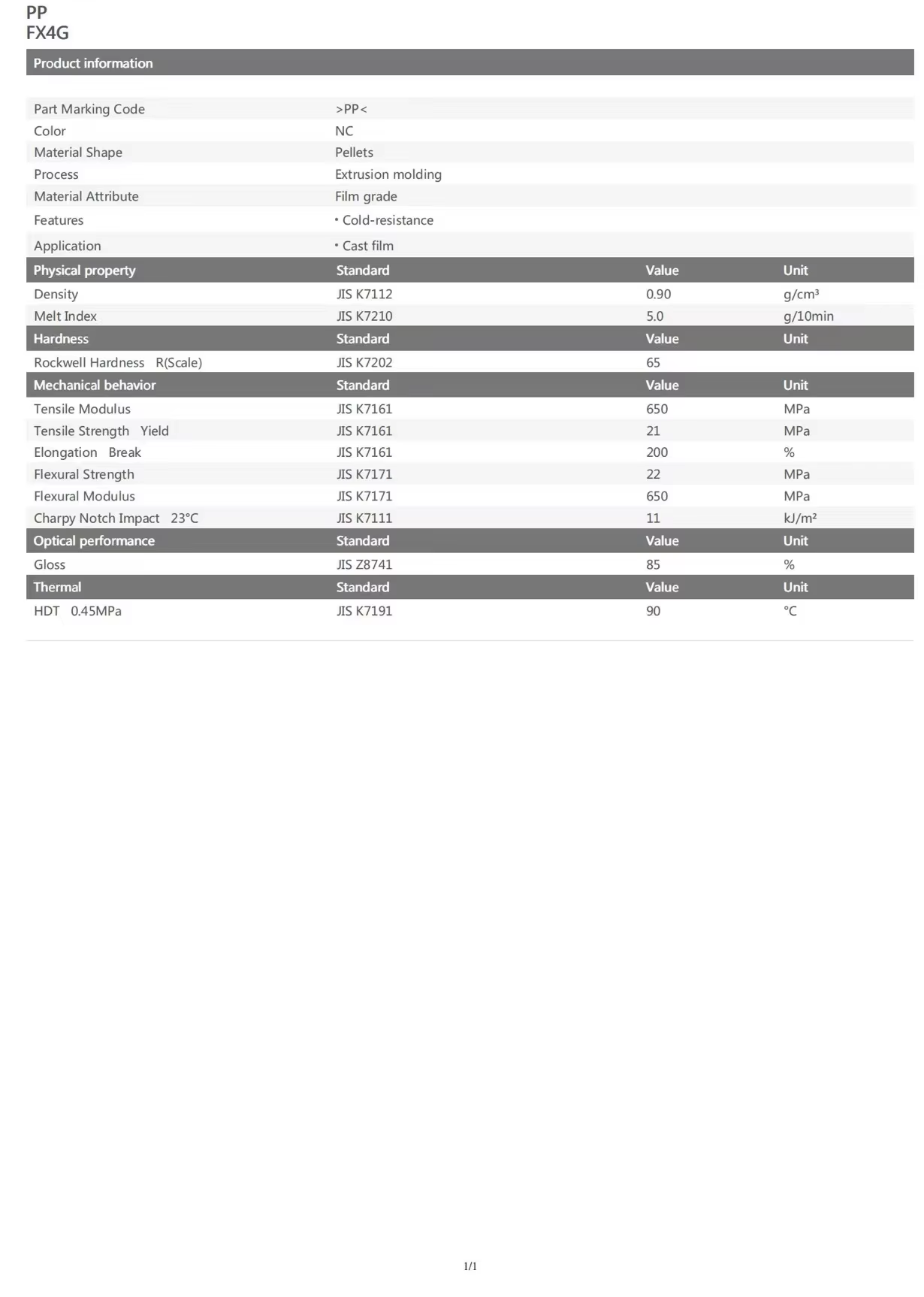

| PP | | FX4G | | Product information | | | | | Part Marking Code >PP< | | Color | NC | | | | Material Shape | Pellets | | | | Process | Extrusion molding | | | | Material Attribute | Film grade | | | | Features | ·Cold-resistance | | | | Application | ·Cast film | | | | Physical property | Standard | Value | Unit | | Density | JIS K7112 | 0.90 | g/cm³ | | Melt Index | JIS K7210 | 5.0 | g/10min | | Hardness | Standard | Value | Unit | | Rockwell Hardness R(Scale) | JIS K7202 | 65 | | | Mechanical behavior | Standard | Value | Unit | | Tensile Modulus | JIS K7161 | 650 | MPa | | Tensile Strength Yield | JIS K7161 | 21 | MPa | | Elongation Break | JIS K7161 | 200 | % | | Flexural Strength | JIS K7171 | 22 | MPa | | Flexural Modulus | JIS K7171 | 650 | MPa | | Charpy Notch Impact 23℃ | JIS K7111 | 11 | kJ/m² | | Optical performance | Standard | Value | Unit | | Gloss | JIS Z8741 | 85 | % | | Thermal | Standard | Value | Unit | | HDT 0.45MPa | JIS K7191 | 90 | ℃ | |
Application
 Optical lighting It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. |  Electronic appliances It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. |  Mechanical equipment It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Physical Property Parameter
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Warehouse:
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.

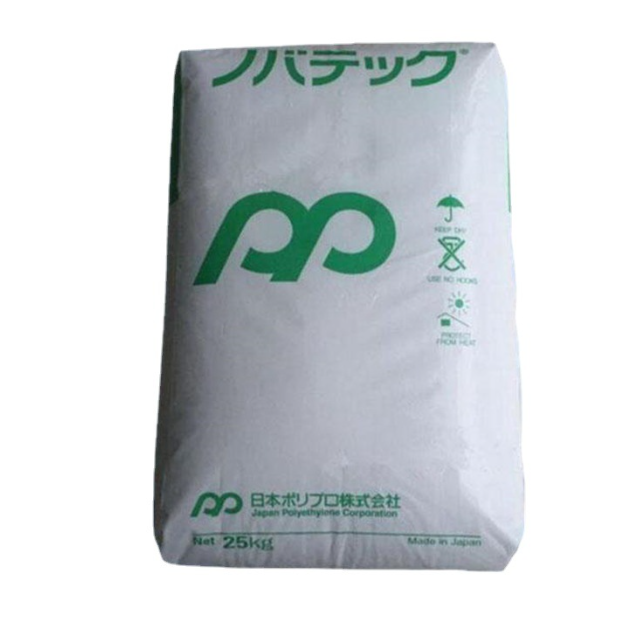

3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client
| Application | Electronics electrical appliances mobile phones cars |
| Grade | Injection Grade,Extrusion Grade |
| OEM/ODM | Accepted |
