Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

Name: Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin
Brand: Basic Innovation Plastics USA
Price: 6 USD

Quality Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin wholesale

Brand Name : Basic Innovation Plastics USA

Model Number : PSU G-1000

Place of Origin : USA

MOQ : 25KG

Price : USD6-6.7KG

Payment Terms : T/T

Supply Ability : 500TONS

Delivery Time : 7-15days

Packaging Details : PE plastic/paper bag

Certification : MSDS

Color : Natural

Material Shape : Pellets

Grade : Injection molding grade

Packing : 25 kg/pack

Application : Electronic and electrical applications

Type : 100% Virgin Material

Port : ShenZhen/GuangZhou,China

Contact Now

Products Description

Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

PSU G-1000 Medical grade basic innovation plastic transparent polysulfone resin flame retardant V0

Good physical properties Mechanical properties Electrical properties High temperature resistance chemical corrosion resistance widely used in electronic and electrical coil skeleton electronic components automotive aviation sensors medical equipment daily necessities mechanical parts and so on

product feature

PSU
G1000

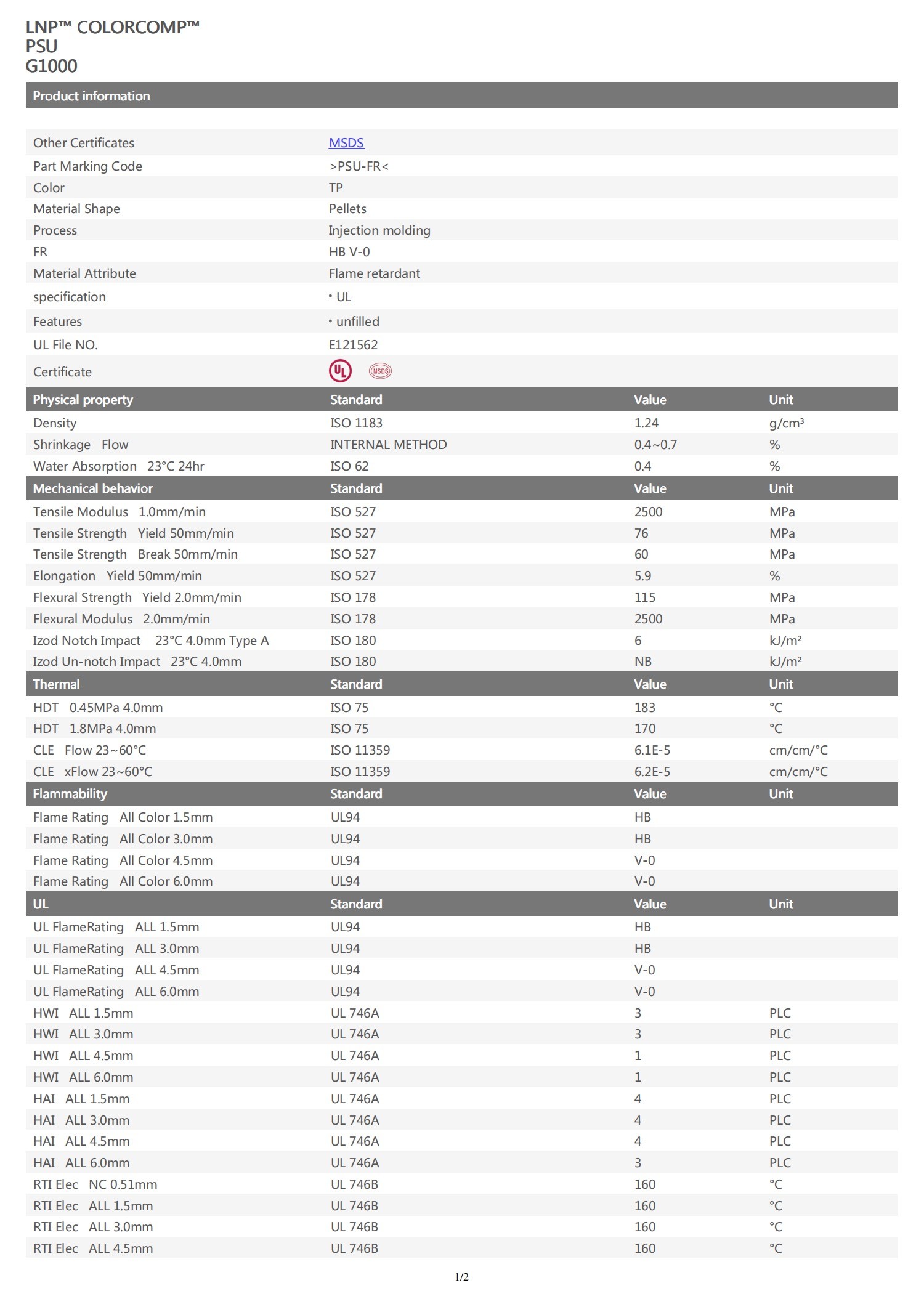

Product information

Other Certificates MSDS
Part Marking Code >PSU-FR<
Color TP
Material Shape Pellets
Process njection molding
FR HBV-0
Material Attribute Flame retardant
specification ·UL
Features unfilled
UL File NO E121562
Certificate
Physical property Standard Value Unit
Density SO 1183 1.24 g/cm³
Shrinkage Flow NTERNAL METHOD 0.4-0.7 %
Water Absorption 23C24hr ISO62 0.4 %
Mechanical behavior Standard Value Unit
Tensile Modulus 1.0mm/min ISO 527 2500 MPa
Tensile Strength Yield 50mm/min ISO 527 76 MPa
Tensile Strength Break 50mm/min SO 527 60 MPa
Elongation Yield 50mm/min ISO 527 5.9 %
Hlexural Strength Yield 2.0mm/min ISO 178 115 MPa
Flexural Modulus 2.0mm/min ISO 178 2500 MPa
zod Notch Impact 23℃4.0mm Type A ISO 180 6 kJ/m²
Lzod Un-notch Impact 23℃4.0mm ISO 180 NB kJ/m²
Thermal Standard Value Unit
HDT 0.45MPa 4.0mm ISO75 183 ℃
HDT 1.8MPa 4.0mm ISO75 170 C
CLE Flow 23-60℃ SO 11359 6.1E-5 cm/cm/C
CLE xFlow 23-60℃ SO 11359 6.2E-5 cm/cm/℃
Fammability Standard Value Unit
Flame Rating AllColor 1.5mm UL94 HB
Flame Rating AllColor 3.0mm UL94 HB
Fame Rating AllColor 4.5mm UL94 V-0
Fame Rating All Color 6.0mm UL94 V-0
UL Standard Value Unit
UL FlameRating ALL 1.5mm UL94 HB
UL HameRating ALL 3.0mm UL94 HB
UL FlameRating ALL4,5mm UL94 V-0
UL FlameRating ALL 6.0mm UL94 V-0
HW ALL1.5mm UL746A 3 PLC
HWI ALL 3.0mm UL746A 3 PLC
HW ALL4.5mm UL746A 1 PLC
HWI ALL 6.0mm UL746A 1 PLC
HAI ALL1.5mm UL746A 4 PLC
HAI ALL 3.0mm UL746A 4 PLC
HAI ALL4.5mm UL746A 4 PLC
HAI ALL 6.0mm UL746A 3 PLC
RTI Elec NC0.51mm UL746B 160 ℃
RTI Elec ALL 1.5mm UL746B 160 C
RTI Elec ALL 3.0mm UL746B 160 ℃
RTI Elec ALL 4.5mm UL746B 160 ℃

Application

Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

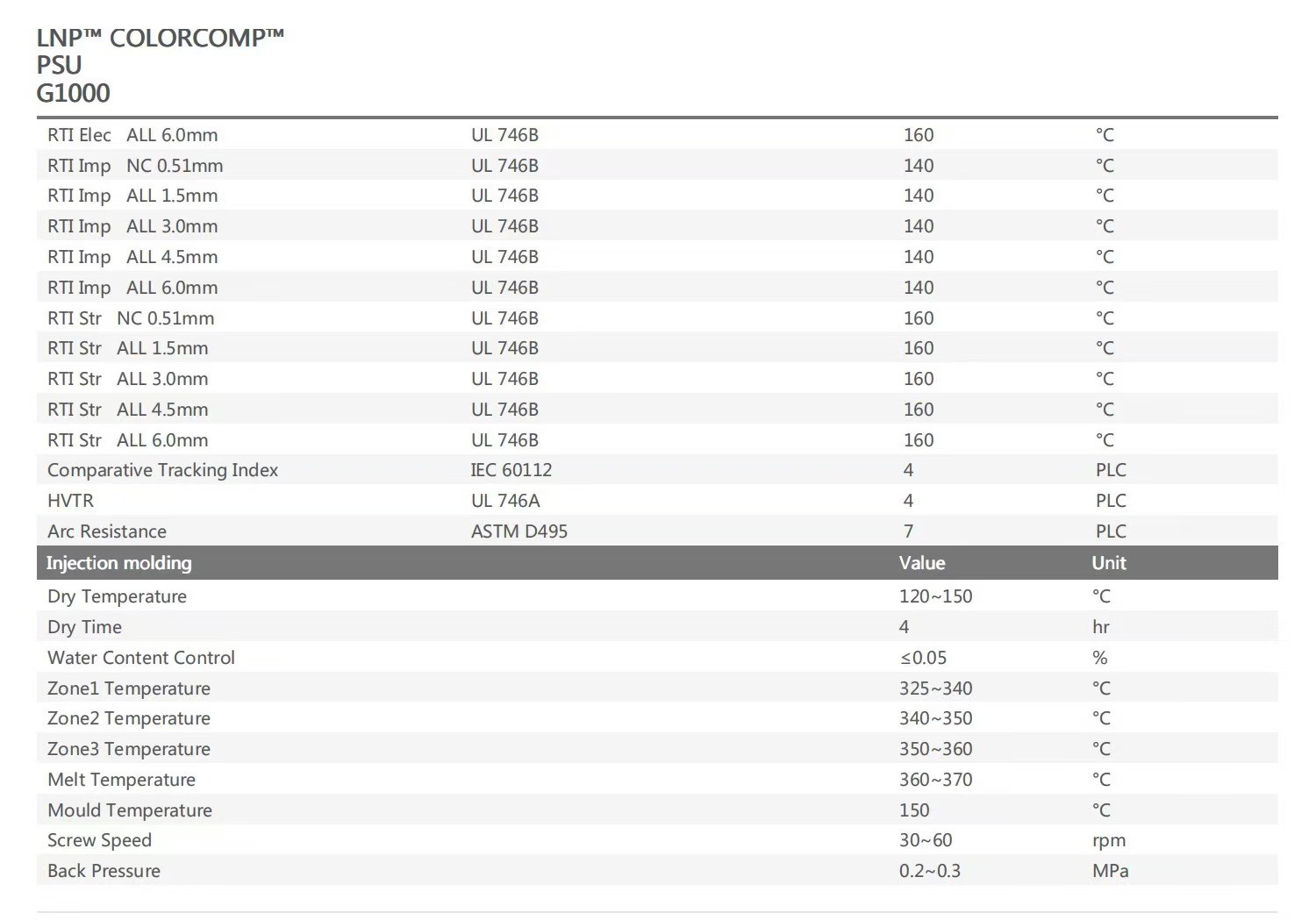

Physical Property Parameter

Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

Warehouse:

FAQ

How about our package?

1.All the packing can be customized.

2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.

3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to

handle the dosage.

What are our business principles?

1.For the trial order, 1tons will be acceptable.

2.We will do our best for the customer as long as you choosing us.

3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?

1.We make sure all the products will be inspected strictly before loading.

2.We will make the shipment within 7 days after confirm the payment.

3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application	Electronics electrical appliances mobile phones cars
Grade	Injection Grade,Extrusion Grade
OEM/ODM	Accepted
