Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Dongguan Pengchen New Materials Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Brand Name : Evonik Degusse

Model Number : PMMA 8N

Certification : MSDS

Place of Origin : Germany

MOQ : 25KG

Price : USD3-3.5

Payment Terms : T/T

Supply Ability : 500TONS

Delivery Time : 7-15days

Packaging Details : Plastic bag/Paper bag

Color : lucency

Transmittance : 93%

Refractive Index : 1.49

Elongation : 6%

Tensile Strength : 77MPa

Port : ShenZhen/GuangZhou,China

Flexural Modulus : 3,000-3,500 MPa

Appearance : Transparent solid

Elongation At Break : 4-6%

Thermal Conductivity : 0.19 W/mK

Flammability : UL 94 HB

Water Absorption : 0.3%

Contact Now

Products Description

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Heat-resistant grade PMMA 8N UV-resistant transparent and weather-resistant PMMA board
PMMA Basic Innovative Plastic 20HR, also known as polymethyl methacrylate, is an engineering plastic produced by SABIC in Saudi Arabia. This plastic has several excellent physical properties and is suitable for a variety of applications, such as hard packaging, lighting fixtures, automotive parts and packaging materials. First, from the appearance, the PMMA 20HR is particle-like, usually transparent or translucent, with a high gloss, making it visually attractive. In terms of processing, the PMMA 20HR is suitable for injection molding and extrusion processes, which gives manufacturers the flexibility to choose the right processing method to manufacture products of various shapes and sizes. In terms of physical performance, the PMMA 20HR performs well. It has high toughness and high impact resistance, allowing it to maintain stability when subjected to external shocks, reducing the risk of rupture

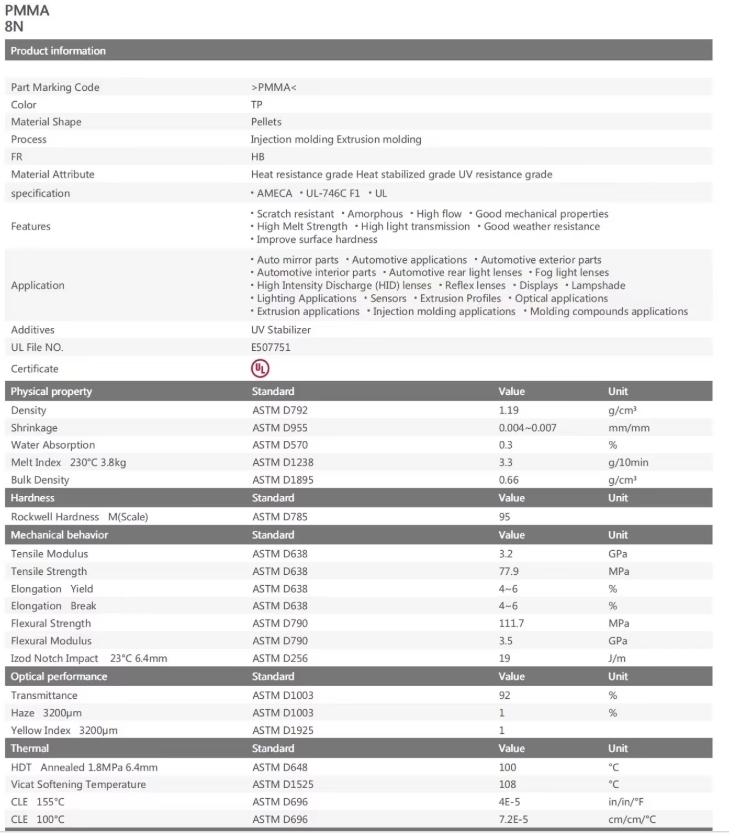

PMMA 8N

Product information
Part Marking Code >PMMA<
Color TP
Material Shape Pellets
Process njection molding Extrusion molding
FR HB
Material Attribute specification Heat resistance grade Heat stabilized grade UV resistance grade AMECA ·UL-746C F1 ·UL
Features

·Scratch resistant ·Amorphous ·High flow ·Good mechanical properties

·High Melt Strength ·High light transmission ·Good weather resistance

·Improve surface hardness

Application

Additives ULFile NO.

·Auto miror parts ·Automotve applications ·Automotive exterior parts

·Automotive interior parts ·Automotive rear light lenses ·Fog light lenses

·High Intensity Discharge(HID)lenses ·Reflexlenses ·Displays ·Lampshade

·Lighting Applications ·Sensors ·Extrusion Profiles ·Optical applications

·E xtrusion applications ·Injection molding applications ·Molding compounds applications UV Stabilizer

E507751

Certificate
Physical property Standard Value Unit
Density ASTM D792 1.19 g/cm³
Shrinkage ASTM D955 0.004~0.007 mm/mm
Water Absorption ASTM D570 0.3 %
Melt Index 230℃38kg ASTM D1238 3.3 g/10min
Bulk Density ASTM D1895 0.66 g/cm¹
Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate Standard ASTM D785 Standard

Value 95

Value

Unit

Unit

Tensile Modulus ASTM D638 3.2 GPa
Tensile Strength ASTM D638 77.9 MPa
Elongation Yield ASTM D638 4~6 %
Elongation Break ASTM D638 4~6 %
Flexural Strength ASTM D790 111.7 MPa
Flexural Modulus ASTM D790 3.5 GPa
zod Notch Impact 23℃6.4mm ASTM D256 19 J/m
Optical performance Standard Value Unit
Transmittance ASTM D1003 92 %
Haze 3200μm ASTM D1003 1 %
Yellow Index 3200μm ASTM D1925 1
Thermal Standard Value Unit
HDT Annealed 1.8MPa 6.4mm ASTM D648 100 ℃

Vicat Softening Temperature CLE 155℃

CLE 100℃

ASTM D1525 ASTM D696 ASTM D696

108

4E-5

7.2E-5

in/in/°F cm/cm/℃

product feature

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Application

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl MethacrylateElectronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl MethacrylateMechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter​

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate

Warehouse:

Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate
Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate Heat Resistant PMMA Raw Material Extrusion Processing Acrylic Polymethyl Methacrylate
FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
